Advanced Spring Dynamics

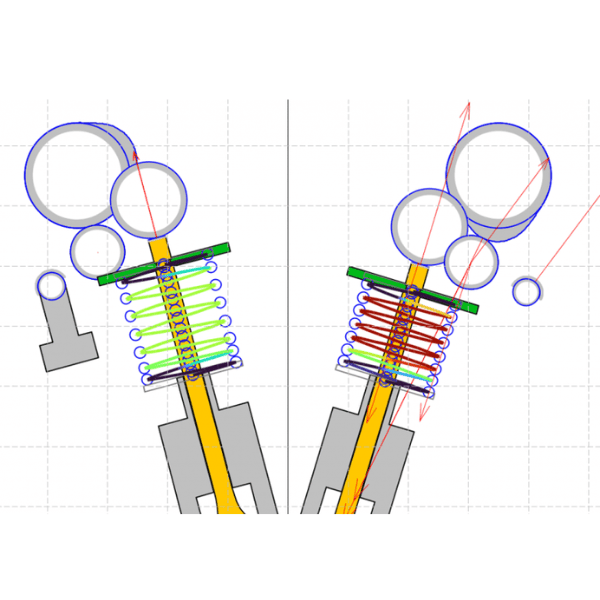

Spring dynamics with distributed mass, stiffness and coil contact.
GT-SUITE provides many tools to the valvetrain engineer, from single valvetrain layout and kinematics to full multi-cylinder camshaft dynamics
Solution Overview
Optimal Tool for Valvetrain Engineers
- From cam profile concept to high-RPM sign-off. What sets GT-SUITE apart is the ability to quickly scale the scope of the model as needed.
- Kinematic analysis delivers instant insight into valve motion and generate cam profiles.
- Fast quasi-dynamics predicts contact stress, valve float, spring surge, and dynamic loads across the full speed range in seconds.

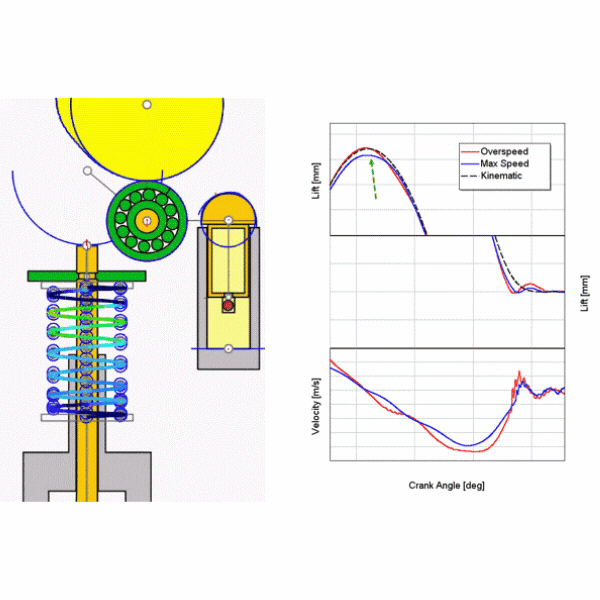

- Full multi-body dynamics with detailed contacts captures spring dynamics, component compliance, valve bounce and dynamic lift, and seating behavior for final validation.
- Full integration with GT-POWER model, closes the performance and durability optimization loop.
- One model, three fidelity levels — faster iteration early, full confidence at sign-off.
Application Highlights
Advanced Valvetrain Modeling and Analysis
- Conventional and variable-lift valvetrain mechanisms
- Interactive widgets for cam profile synthesis and modification
- Kinematic and fast quasi-dynamic valvetrain analysis
- Full multi-body dynamics with rigid and flexible bodies
- Expert-system valvetrain library — cam, valve, lifter, rocker, finger follower, pushrod, and HLA — plus general 2D/3D components
- Built-in visualization and animation of valvetrain motion

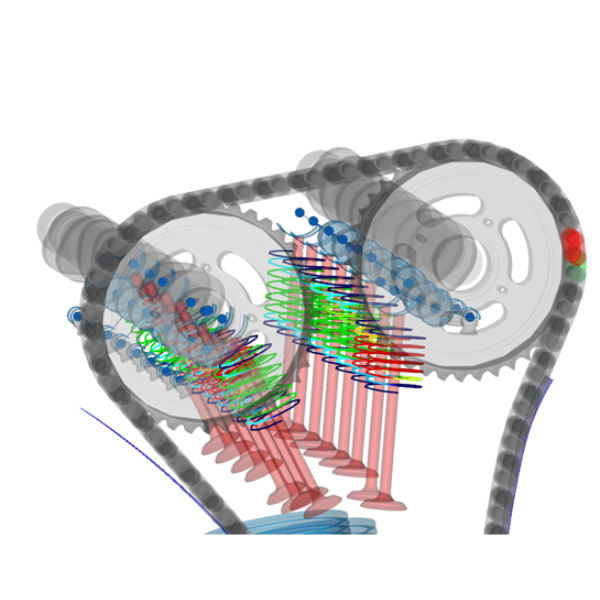

- Single-branch or complete multi-cylinder valvetrain models
- Camshaft torsional vibration analysis in the time and frequency domains
- Camshaft bending and bearing oil film analysis
- Full integration with mechanical, hydraulic, or engine performance circuits
Advanced Features
Valvetrain Modeling Features
Comprehensive capabilities for valvetrain modeling, dynamic analysis, and design optimization.
Tribology and Contact Durability Analysis
Tribology and Friction: Hertz stress, deformation, oil film thickness, and wear at contacts.
Integrated Hydraulic System Modeling
Hydraulics: lash adjusters, cam phasers, hydraulic valve actuation.
Flexible Body Integration via FEA Import
Flexible bodies via native meshing and reduction tools or direct import from commercial FEA tools are supported
Mixed 2D/3D Modeling
Transition elements for mixed 2-D/3-D modeling.
High-Speed ODE Integration
Multiple ODE integrators for fast runtime.
